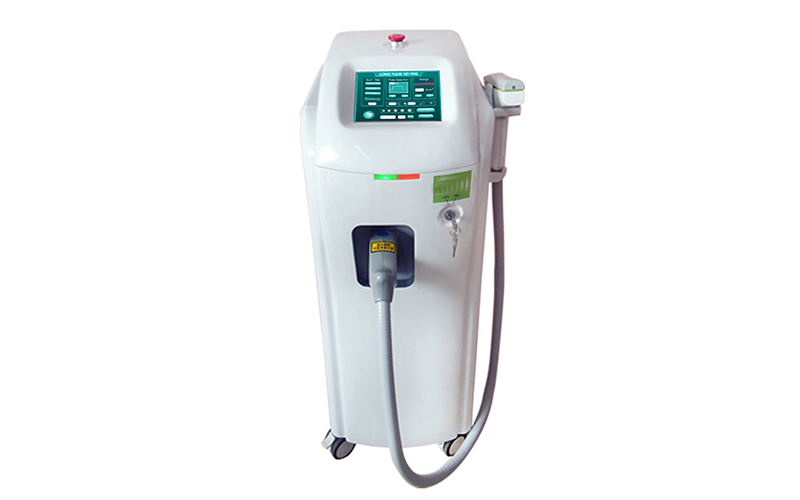

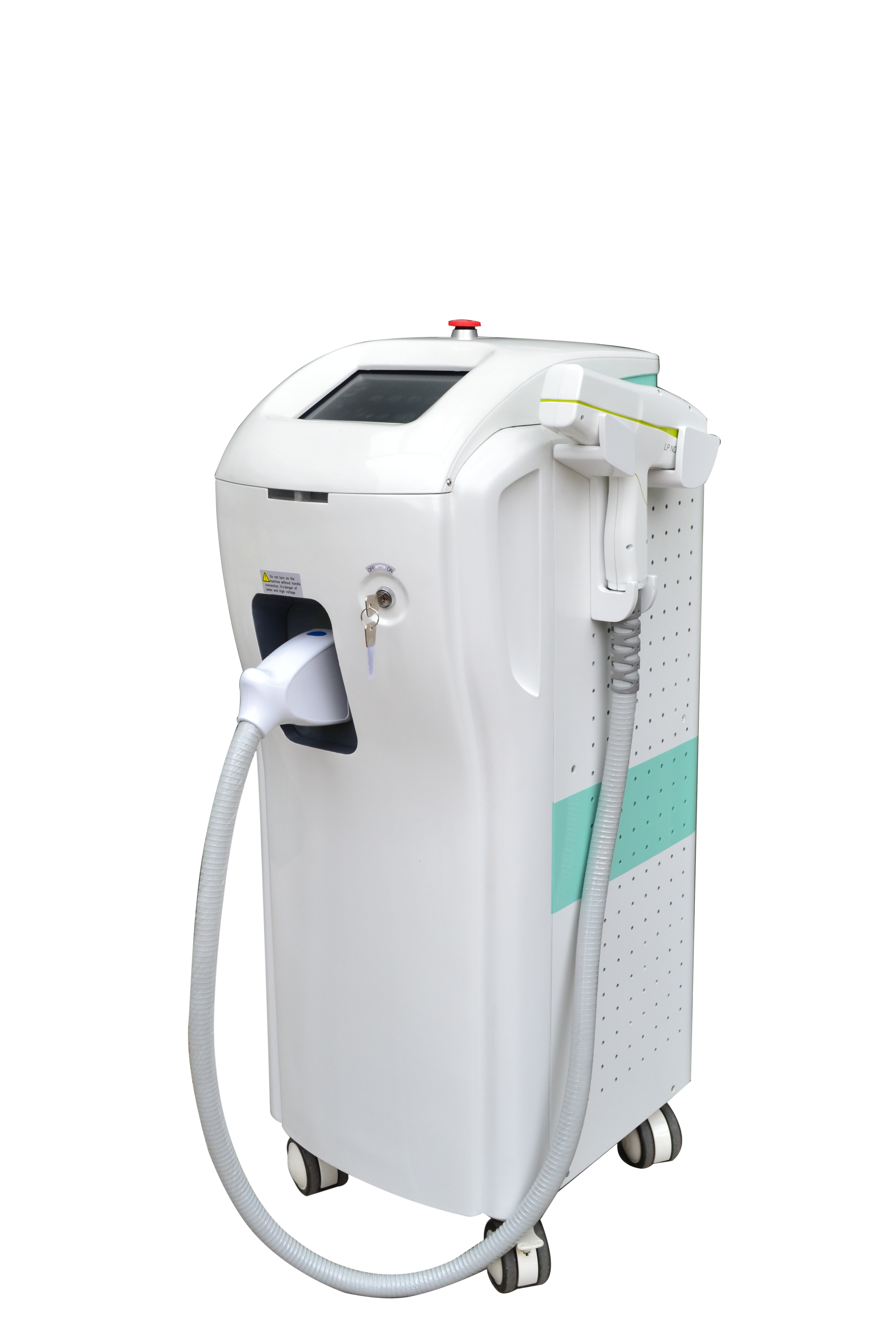

Long Pulsed Nd: YAG Laser
Long Pulsed Nd: YAG Laser emits intense beams of light which safely pass through the epidermis to the underlying strata; hair follicles are eliminated by the process selective photothermolysis, by way of treating the hair without harming the skin. The wavelength of light created by the laser targets the follicular germinal cells in the hair shaft and bulb, once absorbed by the melanin the hair can then be destroyed. The latest innovation in laser hair removal is to use the long pulse ND-YAG laser, emitting a wavelength of 1064nm. This wavelength has a significantly lower absorption rate by the melanin then the shorter wavelengths previously used in Ruby and Alexandrite lasers, this wavelength however does penetrate the skin deeper, therefore at this wavelength we are able to treat a broader range of skin types including darker pigmented skins safely and effectively.
Advantages
1) Ideal for the treatment of darker skin types (V and VI);2) Fast and effective epilating due to the large spot size of up to 10 mm;
3) Successful for epilating fine hairs through short pulse lengths with high energy;
4) Adopting flat top square waveform technology with the max pulse width of 100ms;
5) Three pulse types (one, two, three sequentially pulse in one trigger) with different pulse width and delay are settings to ensure permanent hair removal effective and epidermis safety for all skin types
6) Sapphire cooling top to cool the treatment skin;
7) High Energy Outputs, high effective;
8) CE approved the production processes are according to ISO13485, 93/42/EEC standards;
Applications:
A. Hair removal:Any area of the body for hair removal, such as hairline, hair around lip area, beard, armpit hair, hair on arms, legs, breast and bikini area. Suitable for any skin types, skin colors, hair colors.
B. Vascular removal:
Capillary vessel spider vascular, Varicosity, Angioma, Nevus flammeus.
| Laser Type | Long Pulsed ND:YAG Laser |
| Wavelength | 1064nm |
| Pulse selection | 10-40ms |
| Frequency | 0.5hz, single |
| Waveform | flat top square waveform |
| Pulse energy |

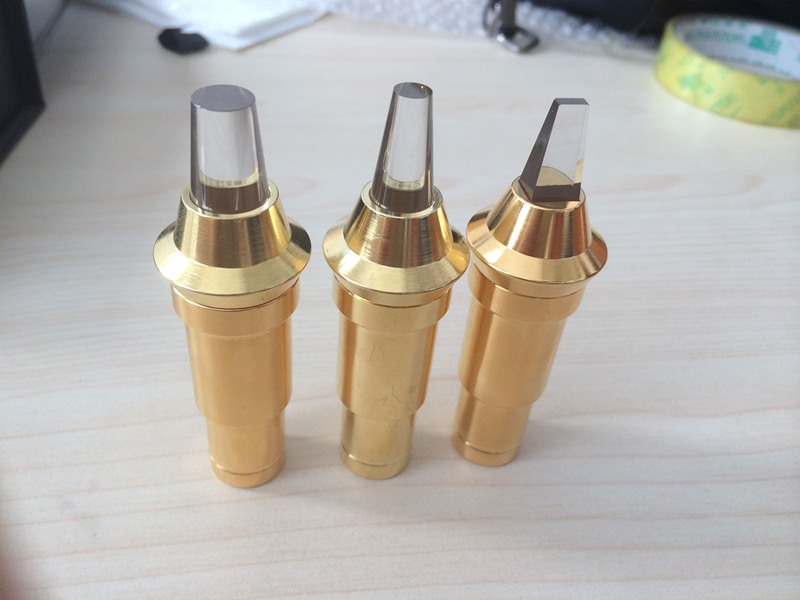

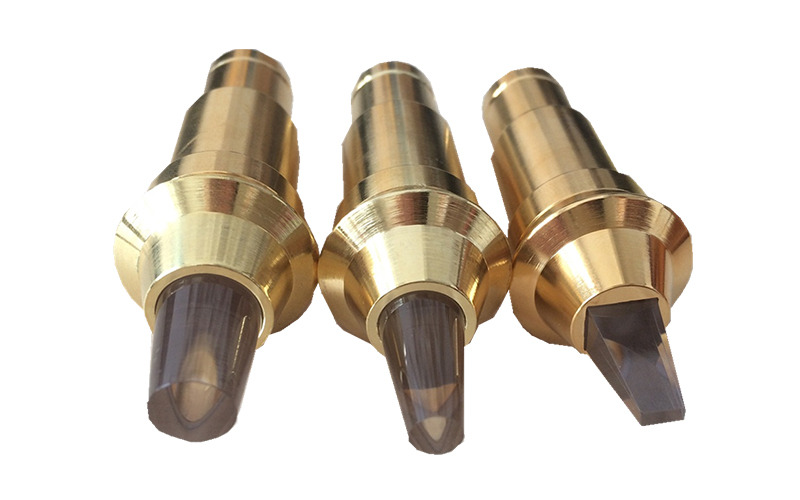

2*5mm Tip: 100-450J/cm2 6mm Tip: 60-260J/cm2 9mm Tip: 10-110J/cm2 |
| Operate interface | 8 inch true color TFT touch screen |
| Cooling system | air and water and TEC cooling system |
| Power supply | 100/110V, 50~60 Hz or 230~260V, 50~60Hz |
| Dimension | 40*50*105cm(L*W*H) |
| Weight | 50kgs |
