Working Theory
Diode laser hair removal technology is based on the selective dynamics of light and heat. The laser goes through the skin surface to reach the root of hair follicles.
Light can be absorbed and converted into heat damaged hair follicle tissue, so that hair loss regeneration without injury surrounding tissue.
The laser light can be absorbed by hair shaft and hair follicles in the melanin, and converted into heat, thus increasing the hair follicle temperature.
When the temperature raises high enough to irreversibly damage the hair follicle structure, which disappear after a period of natural physiological processes of hair follicles and thus achieve the purpose of permanent hair removal.
Advantages
1. Safety: 808nm diode laser with stable function, and long using life, intelligent micro-processor system control timely
2. Quick: Big spot size of 12x18mm2, high effect and quick treatment on big treatment area.
3. Efficiency: 808nm is in the spectrum of near-infrared (0.75 ~ 1.50 μm) region, effective to
absorb melanin and goes through dermis to reach to adipose tissue, acting on different area and depth of hair.
4. No pain: sapphire temperature cool down 0~-5°C, comfortable to the whole treatment.
5. Facilities: intelligent LCD screen, easy operation.

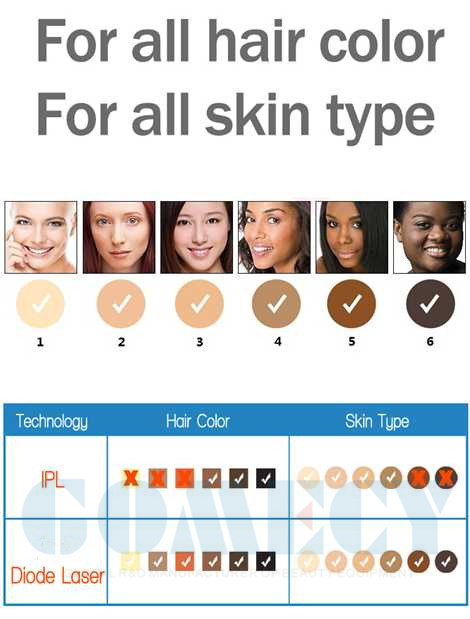

6. Permanent hair removal: suitable to all types of hair color and high efficiency.
Feature
1. Friendly interface. Easily operation.
Customer only need to select sexual, skin type and body part. Then system will recommend the proper parameter. Then
adjust sapphire temperature and start treatment.
2. Water flow rate counting to confirm enough cooling.
We use flow rate sensor instead of water flow switch to monitor water speed accurately. So that to make sure laser head
cooling enough.
3. Professional cooling system to make sure water flow,temperature to confirm continuous work and diode perfect.
4. Professional sapphire for cooling to make sure skin fresh and comfortable.

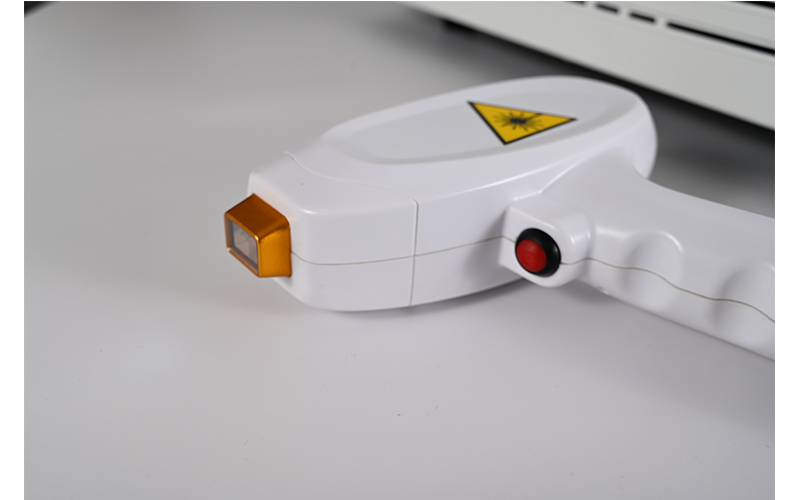

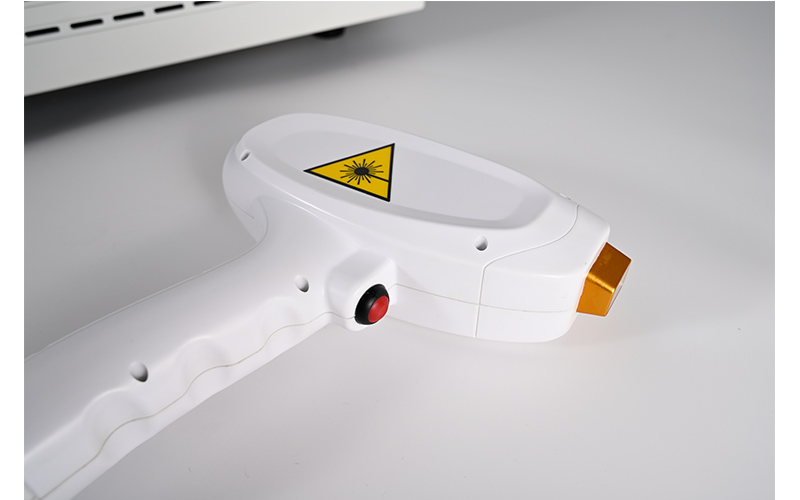

Real pain free hair removal experience. We build treatment head with sapphire and high thermal conductivity cooper, which make treatment head temperature between 0-5°c even use maximum laser power and work 24 hours continuously. Patient feel cool or little warm without any pain in whole treatment process.
5. Super cooling system
A. Water cooling,
B. air cooling,
C. semi-conductor cooling
D. compressor refrigeration cooling.
E. TEC Cooling.
F. Automotive cooling blanket.
Specifications
| Input Power | 2000W |
| Laser type | Diode Laser |
| Wavelength | 808nm/810nm(755+808+1064nm) |
| Laser Output Power | 800W |
| Pulse Width | 5-400ms |
| Energy Density | 1-120J/CM2 |
| Spot Size | 12*18mm |
| Repetition Frequency | 1-10HZ |
| Cooling | Sapphire Touch Cooling:-5℃-5℃ |
| Display | 8.4 inch TFT Chromatic Screen |
| Voltage | AC 100V/220V, 60Hz/50Hz |
| Cooling |
Water Cooling Air Cooling Semi-conductor Cooling. TEC Cooling. Automotive Cooling Blanket. |
Before & After
