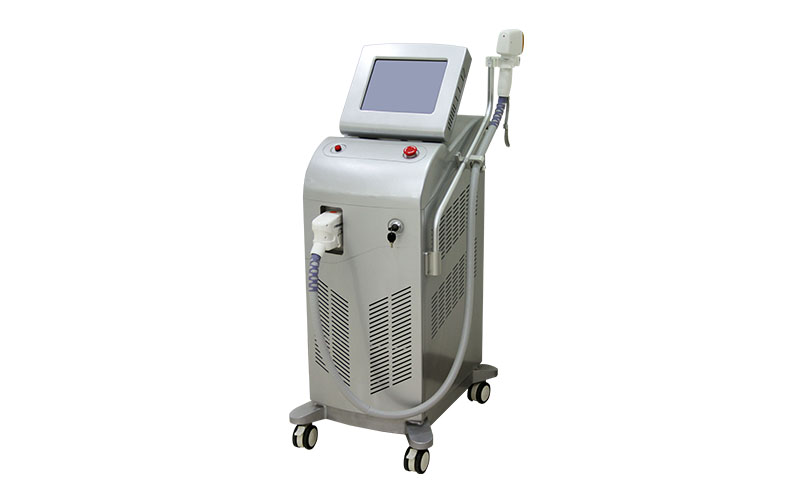

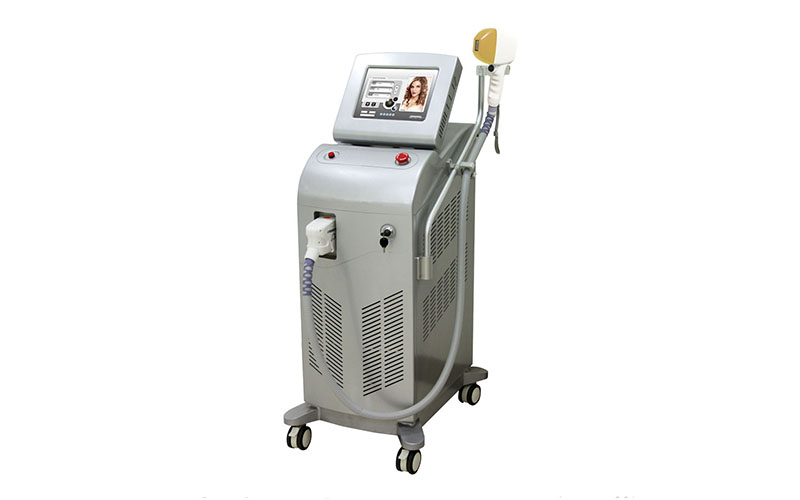

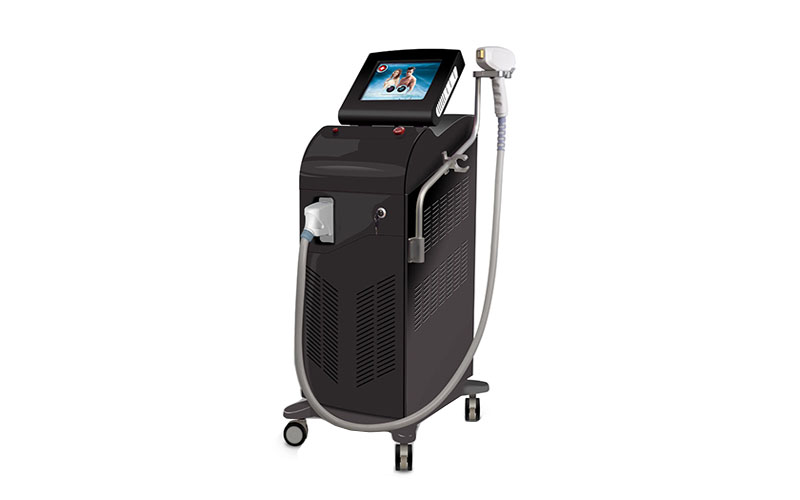

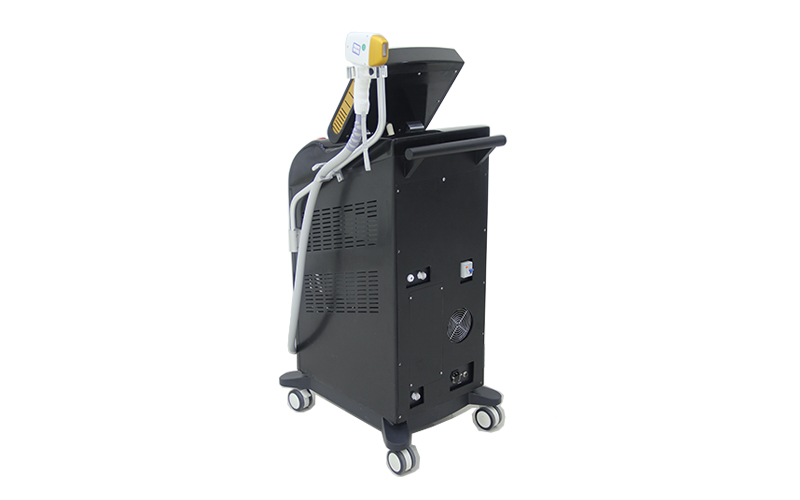

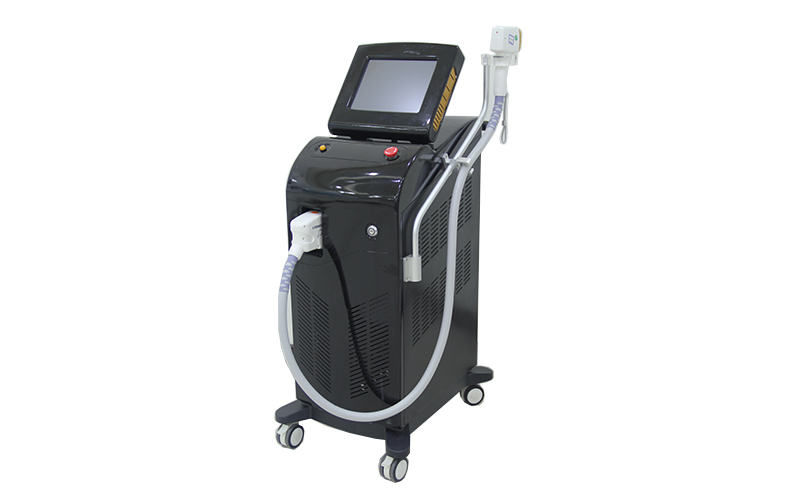

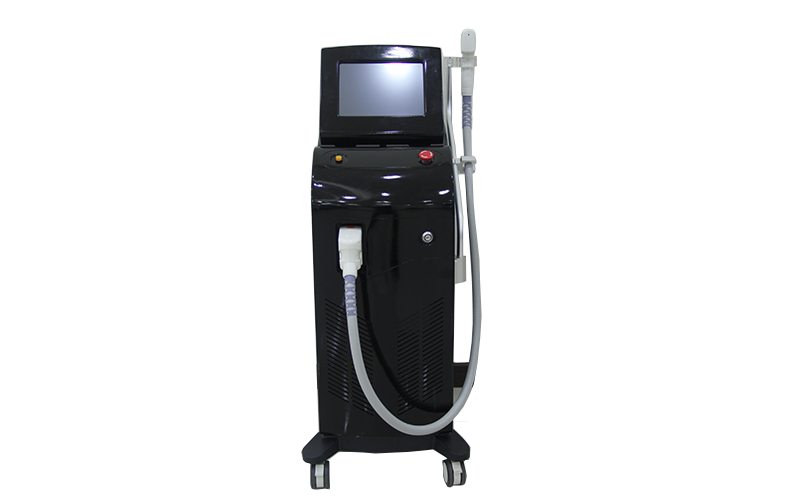

808nm/810nm(755+808+1064nm)Diode Laser Hair Removal
Working Theory

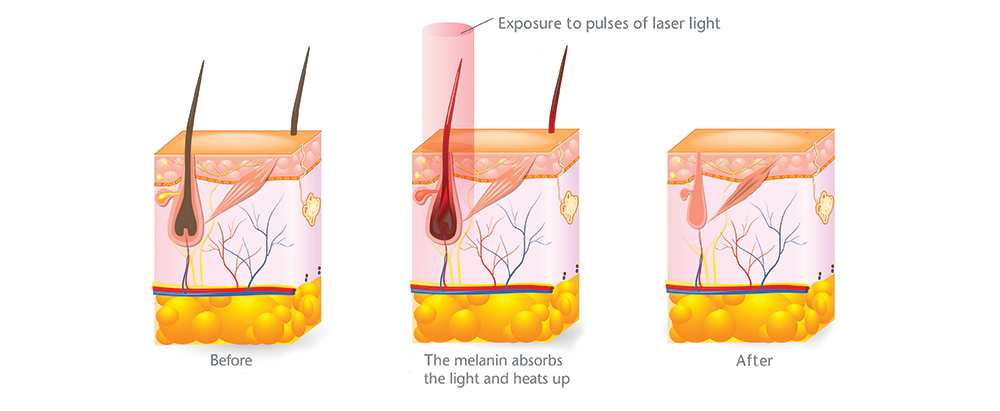

Diode laser hair removal technology is based on the selective dynamics of light and heat. The laser goes through the skin surface to reach the root of hair follicles. Light can be absorbed and converted into heat damaged hair follicle tissue, so that hair loss regeneration without injury surrounding tissue.
The laser light can be absorbed by hair shaft and hair follicles in the melanin, and converted into heat, thus increasing the hair follicle temperature. When the temperature rasises high enough to irreversibly damage the hair follicle structure, which disappear after a period of natural physiological processes of hair follicles and thus achieve the purpose of permanent hair removal.
What is “jet smooth”“Jet smooth” adopts 810nm / 808nm diode laser, uniform energy constantly penetrates deep into dermis and heat hair follicle with maximum 10 pulses in one seconds. Instead of destroying follicle in a short time, SHR mode is specially designed to heat hair follicles to proper damage point gradually with low frequency to assure the virtual painless and fast treatment.
Touch cooling system
Sapphire touch cooling assure reliable and constant cooling result for skin surface with the maximum comfort and safety. Maximum energy target on follicle with less consumption by tissue. When Dermi ICE start to release energy, Sapphire touch cooling system works Automatically. The temperature of -5°C to 5°C furtherly increase treatment comfort
Advantage of diode Laser for hair removal
1. 800W/1200W power is capable to meet all demands of hair removal on the whole body;
2. 10Hz frequency and 12x18mm spot size ensures faster, smooth and effective treatment;
3. Super sapphire touch directly cooling system ensures painless and comfortable treatment;
4. No consumable and less maintenance expense after purchase
5. With a longer wavelength, almost no laser scattering on epidermis, the treatment is much safer, particularly for darker skin;
6. Micro-channel cooling technology of semi-conductor array ensures steady emitting when the frequency is 10Hz;

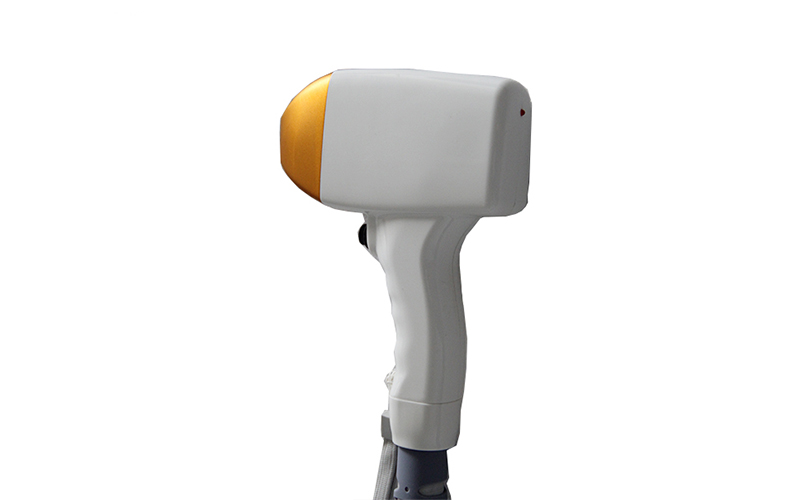

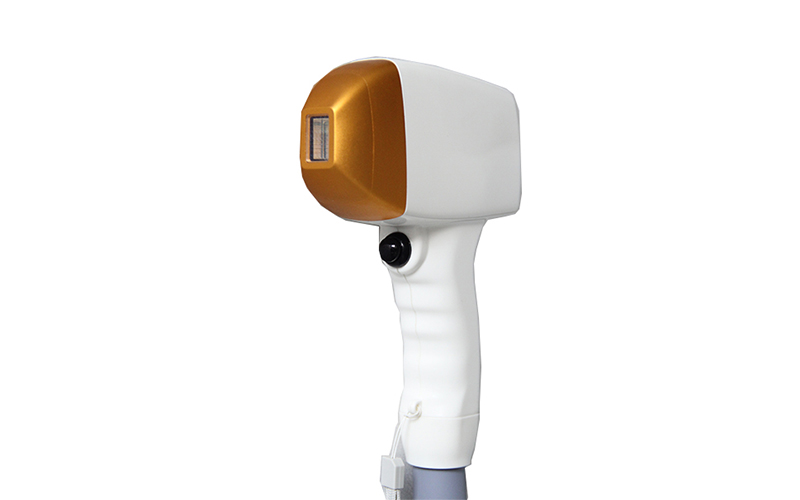

7. Plug & play handle enables easy transport and lower the maintenance cost;
8. Treatments are virtually painless;
9. 24 hours continues work;
10. More than 20,000,000 flash for longer laser generator’s lifetime flashes
Super cooling system
A. Water cooling,
B. air cooling,
C. semi-conductor cooling
D. compressor refrigeration cooling. ( Only in our company )
E. TEC Cooling. ( Only in our company )
F. Automotive cooling blanket. ( Only in our company )
Specifications
| Input Power | 3000W |
| Laser type | Diode Laser |
| Wavelength | 808nm/810nm(755+808+1064nm) |
| Laser Output Power | 800W / 1200W |
| Pulse Width | 5-400ms |
| Energy Density | 1-120J/CM2 |
| Spot Size | 12*18mm/12*28mm |
| Repetition Frequency | 1-10HZ |
| Cooling | Sapphire Touch Cooling:-5℃-5℃ |
| Display | 8.4 inch TFT Chromatic Screen |
| Voltage | AC 100V/220V, 60Hz/50Hz |
| Cooling |
Water Cooling Air Cooling Semi-conductor Cooling. TEC Cooling. Automotive Cooling Blanket. |
Before&after
