Professional Powerful Q-Switched Nd:Yag Laser Machine
Treatment Principle
Adopting the Q-Switched ND: YAG model, the equipment uses laser to emit high energy instantaneously which smashing the pigment of pathological tissues, namely the laser leading explosive effect: High energy emits instantaneously, making particular wavelength laser penetrating epidermis and getting into pathological pigment tissues in only 6nms.
Then pigments expand in top speed and explode. The superficial epidermis would be bounded out of body, other part of the pigments would split into granules which would be engulfed by macrophages, then exclude by the lymphatic system finally. The pigment becomes shallow gradually finally disappear while the surrounding normal skin tissues keep sound as they do not absorb particular wavelength laser.
Application Ranges
1. Removing the pigment skin pathological changes, the pigmentation caused by color pigment mixture, Pore remove,Face lift.
2. Removing the corium spots, freckle, mole, birthmark, nevus of Ota etc.
3. Specialized in removing red capillary, coffee, brown, black, cyan and other colorized tattoos.
4. Effectively remove all kinds of embroider eyebrow, soak lip, eye line, and lip line.
5. Skin rejuvenation: skin care.
Parameter
|
Laser Type |
Electro optical Q-switched Nd: Yag Laser |
|
Laser Wavelength |
Double wavelength 1064nm and 532nm |
|
Pulse width |
2-6ns |
|
output energy of single pulse |
532nm: ≤500mj 1064nm: ≤1000mj Genesis mode:1300mj |
|
Indicator |
Red Diode laser aiming beam |
|
Spot size |
2 - 10 mm diameter |
|
Treatment Head |
2 heads for change， zoom, honeycomb |
|
Delivery system |
7 jointed articulated arm counter balance |
|
Cooling System |
Closed Cycle Water to Air Heat Exchanger |
|
Pumping Way |
Single xenon lamp, single crystal stick |
|
Frequency |
up to 10Hz continuous adjustable |
|
PTP mode |
50% energy increasing |
|
Dimension &Net Weight |
288mm*583mm*847mm /85kg |
|
Output Power |
1500W |
|
Consumed power |
800VA |
|
Voltage |
AC220V/ 110V±10% 50HZ/ 60HZ |
Advantages:
1. 2 different adjustable treatment heads for change. The spot size can reach 2-10mm
Maximally.
2. Dual wavelengths (1064 nm & 532 nm)is convenient to adjust .
3 . Articulated arm from Korea with low optical loss, low maintenance, high stability and long lifetime.
4. Red Diode laser aiming beam ,ensure more accurate output light. Flat-Top
Beam,ensures energy steady and unique. give good treatment results!
5. No damage for hair follicle, and no harm for ordinary skin.
6. Solid laser, produced according to international standard, stable performance. Wider application scope, and more effective functions for skin pigmentation, dermal pigmentation, and exogenous pigmentation. Short treatment period with outstanding effects.
7. The adjustable output frequency for free choice.
8. The single pulse energy can be up to 1500MJ to eliminate the deeply endogenous pigmentation thoroughly and easily.
9. The unique flow detection system and fault self-checking, very intelligent designs.
10. High and new laser technology-instantaneous explosion.
11. Using the super cooling system with stable performance to ensure and meet the continuously long time work of machine.

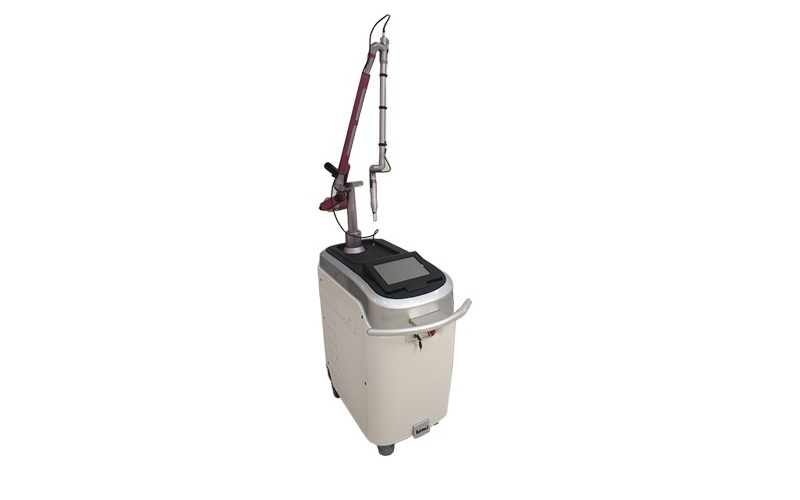

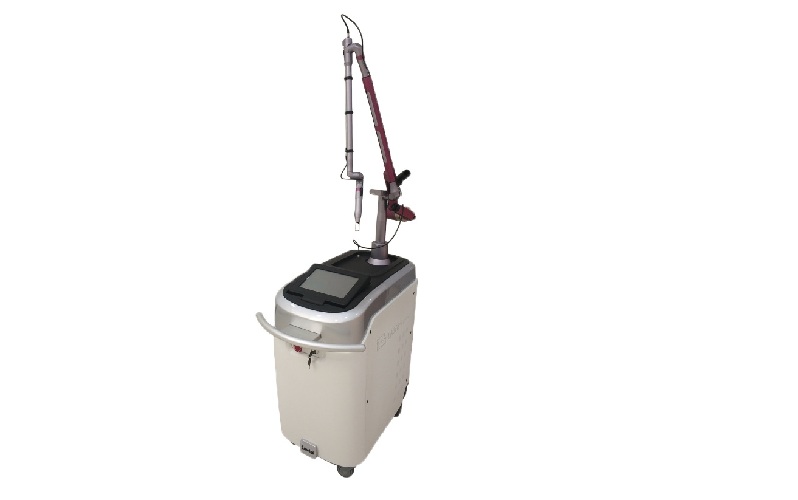

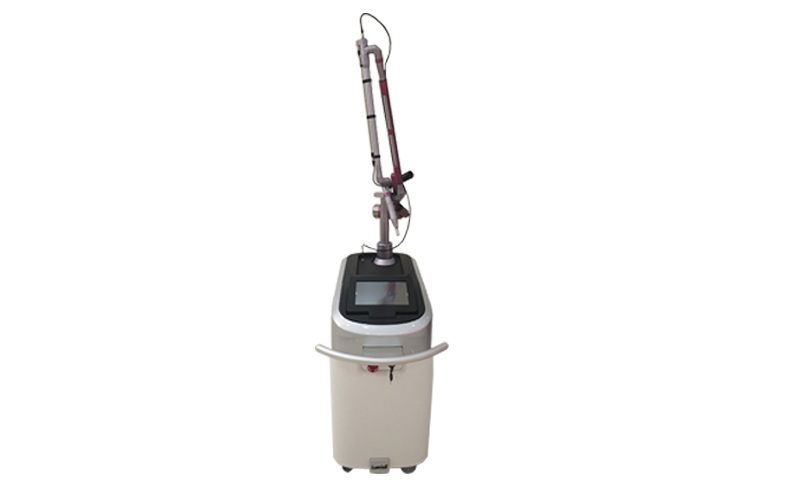

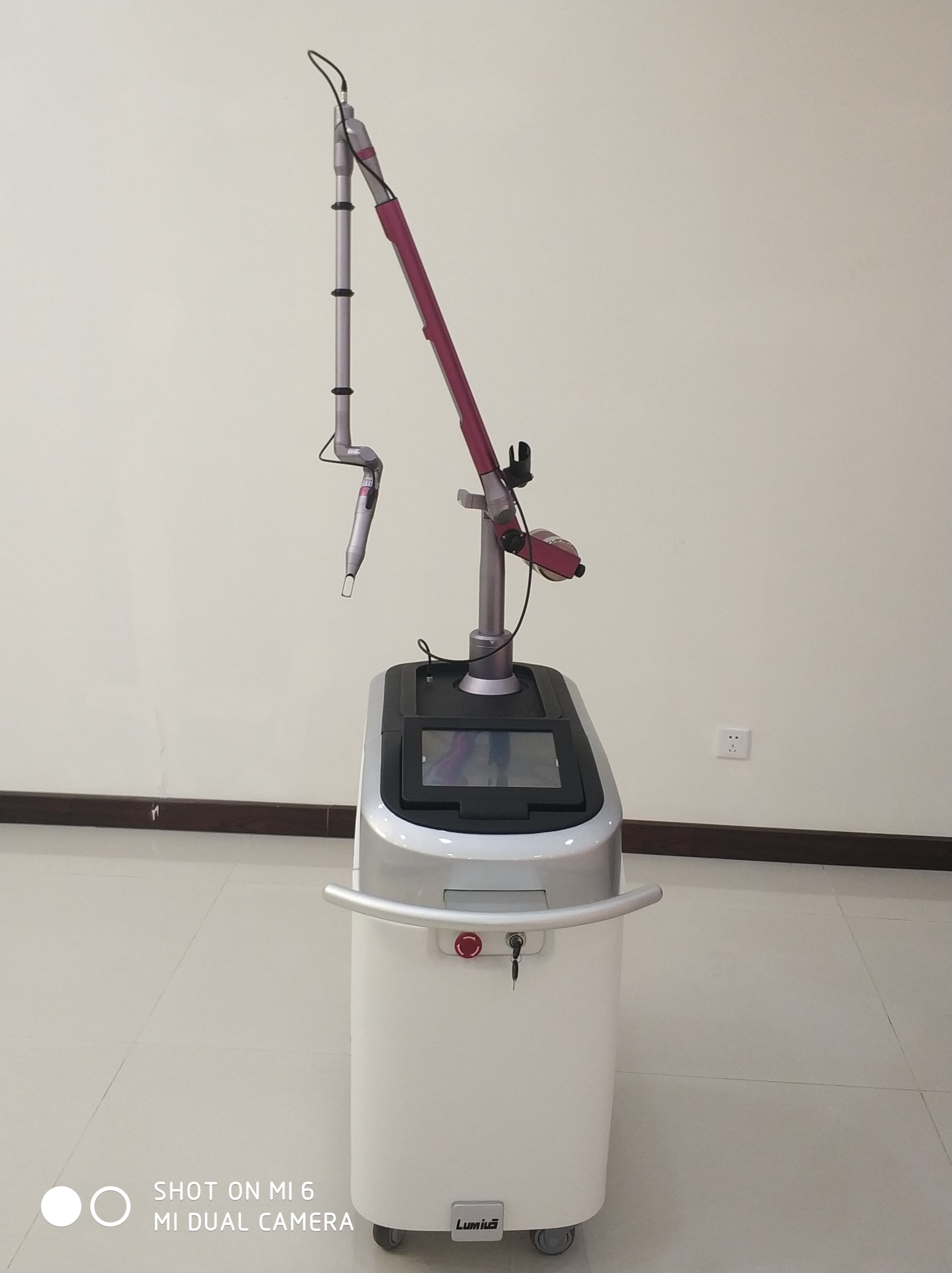

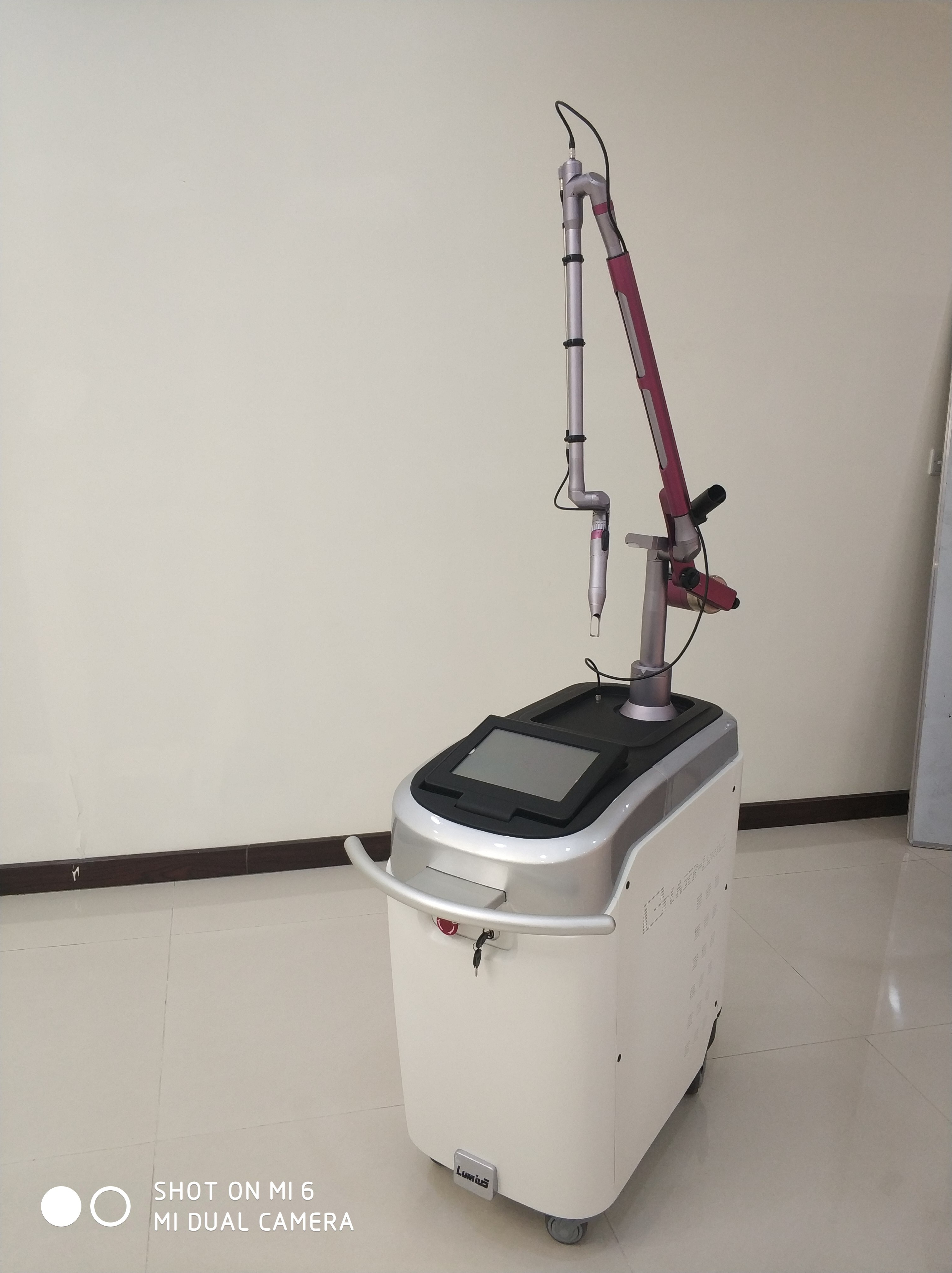

Machine display

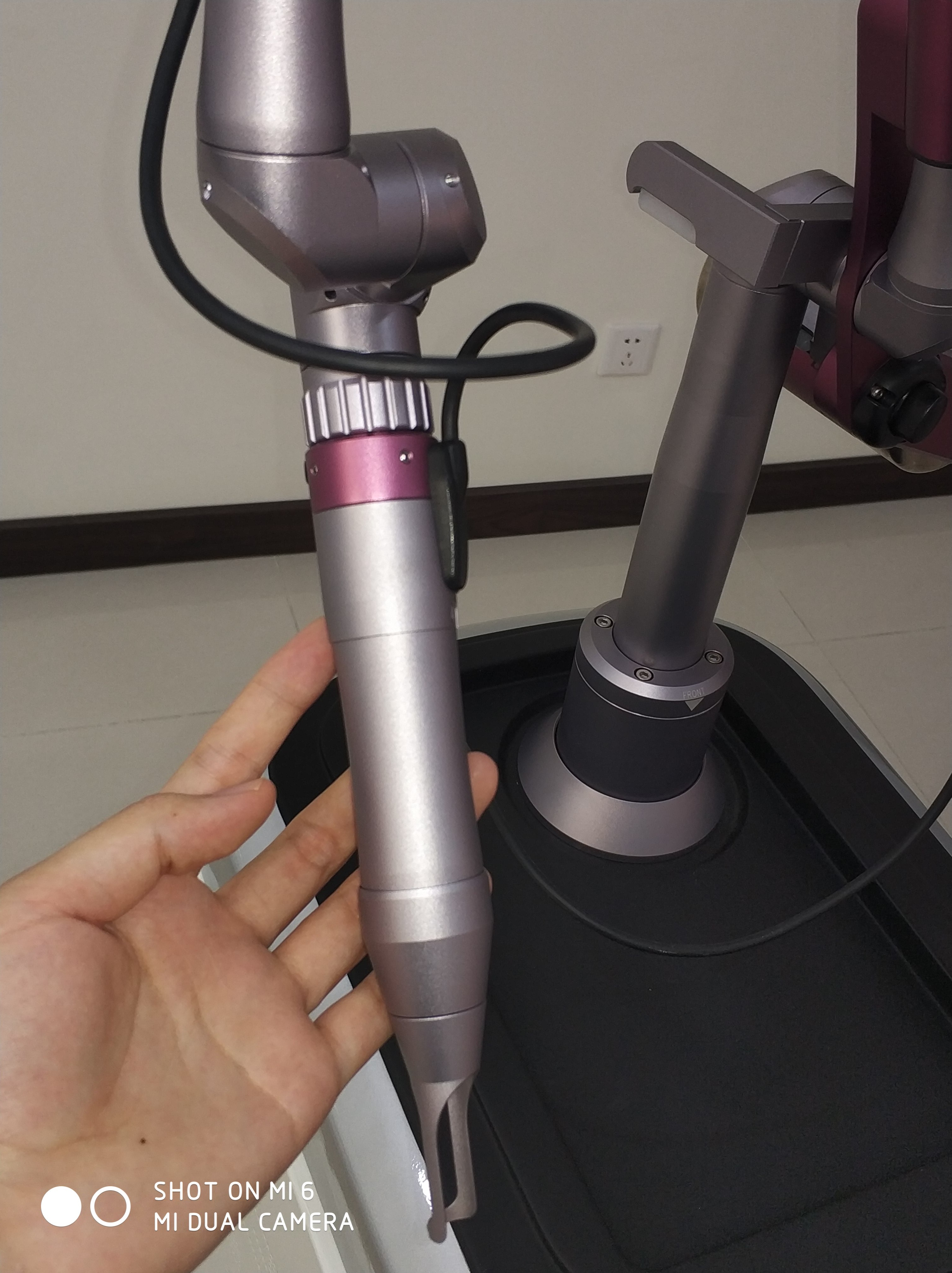

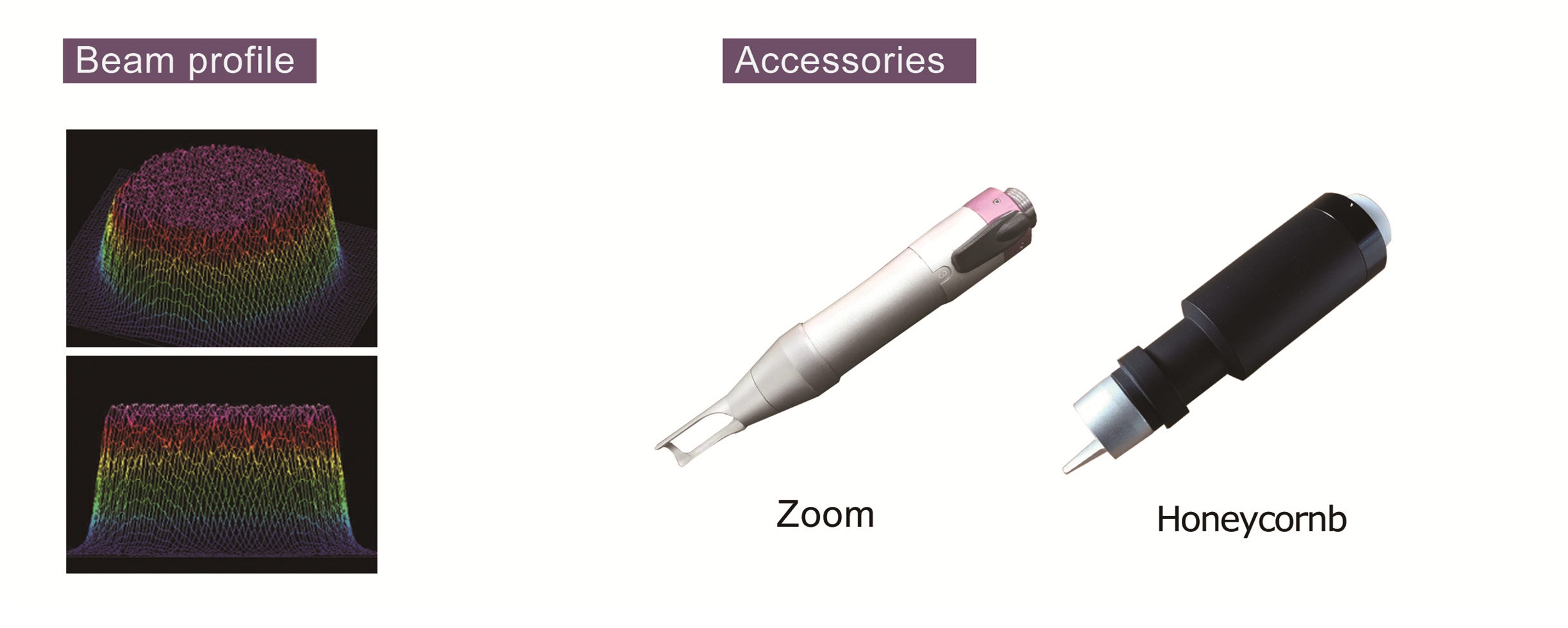

Accessories
Before & After
