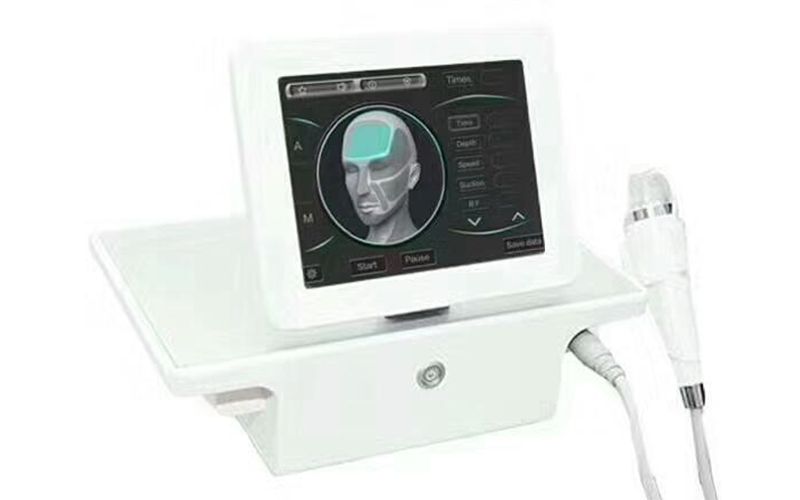

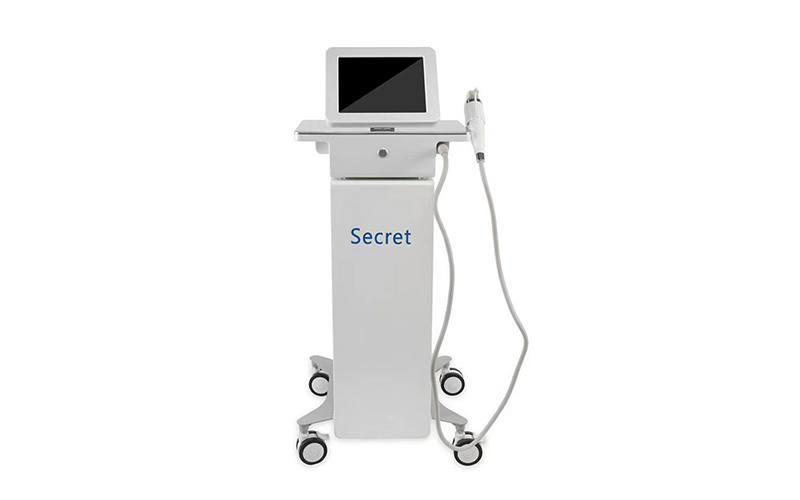

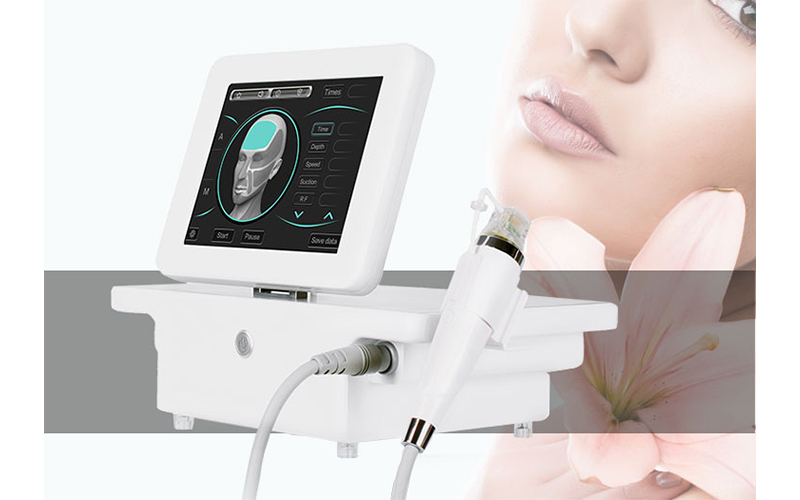

Fractional Rf Microneedle Machine
Fractional Micro Needle RF system is a ideal technology for skin rejuvenation by applying preciously controlled RF energy directly into a certain depth of dermis with minimally invasive micro needles Such an ideal combination of micro needling plus RF energy reduces treatment time and recovery time significantly differentiating from fractional laser based treatment.
Moreover, fractional Micro needle RF system can be treated irregardless of skin type, even darker skin with low risk of skin burns and PIH comparing with other laser treatment.
Moreover, fractional Micro needle RF system can be treated irregardless of skin type, even darker skin with low risk of skin burns and PIH comparing with other laser treatment.
How it works?
Fractional RF needle system through the special design of many fractional needle point array, the high speed digital motor controls order through the epidermis and the dermis accurate to control the depth of 0.25-3 mm,again by the end of lattice needle release RF,stimulate collagen and elastic tissue,and is not themal damage skin layer potentical.When skin tissues through this process,the epidermal layer is safe,RF energy can well to penetrate to the dermis,stimulate collagen protein hyperplasia,not only is the best way to improve the scars,but also long-term tightening skin wrinkles induced the good method. Cryo helps SRF and MRF play its function.
Fractional RF needle system through the special design of many fractional needle point array, the high speed digital motor controls order through the epidermis and the dermis accurate to control the depth of 0.25-3 mm,again by the end of lattice needle release RF,stimulate collagen and elastic tissue,and is not themal damage skin layer potentical.When skin tissues through this process,the epidermal layer is safe,RF energy can well to penetrate to the dermis,stimulate collagen protein hyperplasia,not only is the best way to improve the scars,but also long-term tightening skin wrinkles induced the good method. Cryo helps SRF and MRF play its function.
Advantages:
1.Treatment with vacuum,more comfertable
2. Non Insulated Needles
3. Stepping Motor Type
Different to existing Solenoid Type, the needle inserts to the skin smoothly with no shock, and causes no bleeding and no pain after the procedure.
4. Gold Plated Needles
5. Precise Depth Control. 0.5~5.0mm [0.1mm Step]
Operates epidermis layer and dermis layer by Controlling the needle depth in unit of 0.1mm
6. Safety Needle System
- Sterilized disposable needle tip
- Operator can easily notice the applying RF energy from ared light.
7. Elaborate Needle Thickness. Min : 0mm < Max : 0.3mm
The needle structure is easy to penetrate the skin with minimum resistance.
1.Treatment with vacuum,more comfertable
2. Non Insulated Needles
It is possible to operate equal therapy to Epidermis Layer and Dermis Layer as the needle do not have Insulation Plating.
3. Stepping Motor Type
Different to existing Solenoid Type, the needle inserts to the skin smoothly with no shock, and causes no bleeding and no pain after the procedure.
4. Gold Plated Needles
Needle is durable and also has high Biocompatibility by applying Gold Plating. Patient with metal allergy could also use it with not concerning Contact Dermatitis.
5. Precise Depth Control. 0.5~5.0mm [0.1mm Step]
Operates epidermis layer and dermis layer by Controlling the needle depth in unit of 0.1mm
6. Safety Needle System
- Sterilized disposable needle tip
- Operator can easily notice the applying RF energy from ared light.
7. Elaborate Needle Thickness. Min : 0mm < Max : 0.3mm
The needle structure is easy to penetrate the skin with minimum resistance.
Product Paramenters
|
RF frequency
|
2MHz, bipolar
|
|
RF power
|
10-200W
|
|

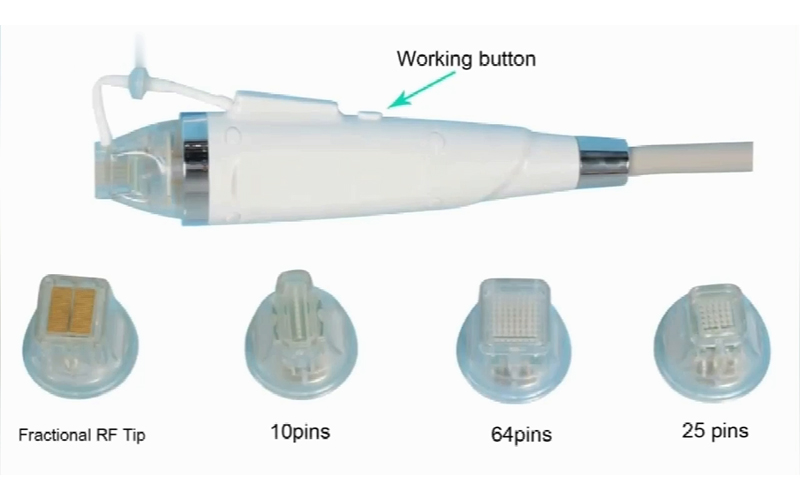

Needle cartridges(gold plated)
|
10pin,25pin,64pin(electrode insulated Needle)
|
|
Needle Thickness
|
0.3mm
|
|
Needle Depth
|
0.2-3.5mm(0.1 step)
|
|
Treatment Duration
|
0.1-0.6s
|
|
Vacuum Suction
|
Max 74Kpa±15%/ 2 levels
|
|
Control Display
|
8.4 inch color touch screen
|
|
Voltage
|
AC 110V/220V, 50Hz/60Hz
|
|
Weight
|
15kg
|
|
Packing size
|
53*41*40cm3
|
Before and After
